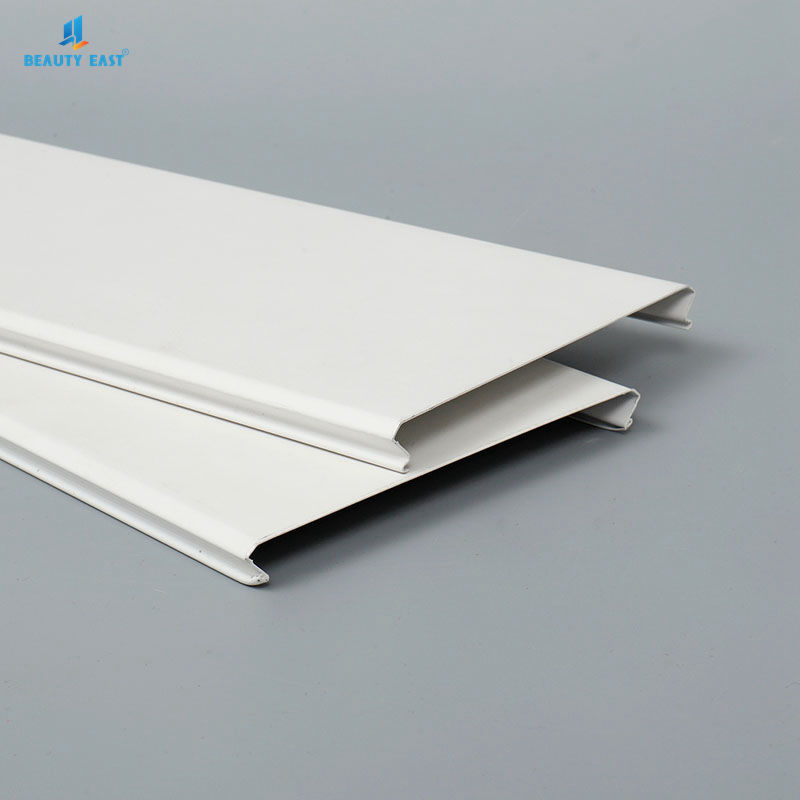

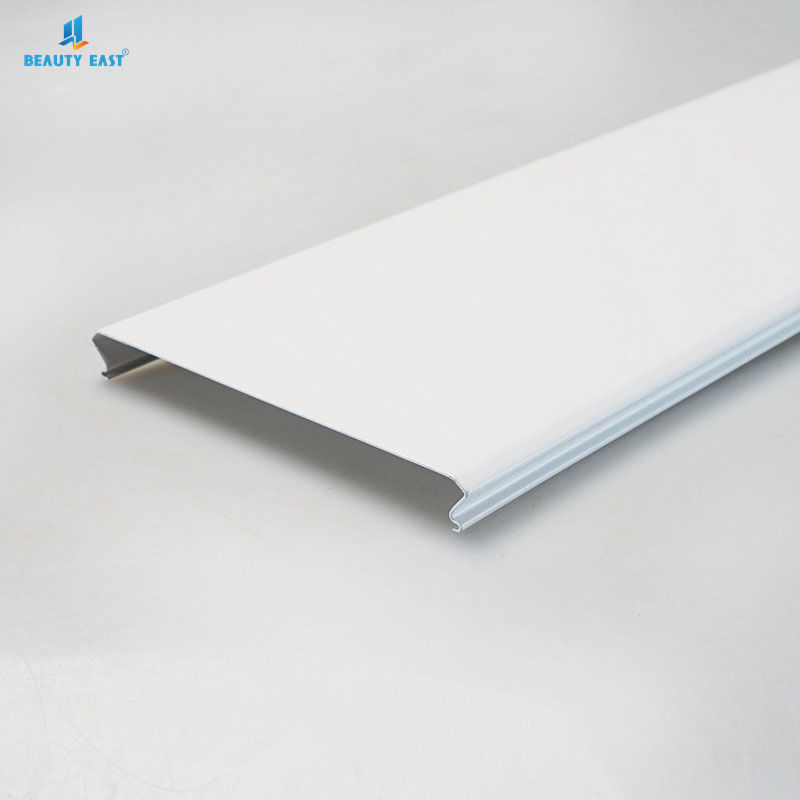

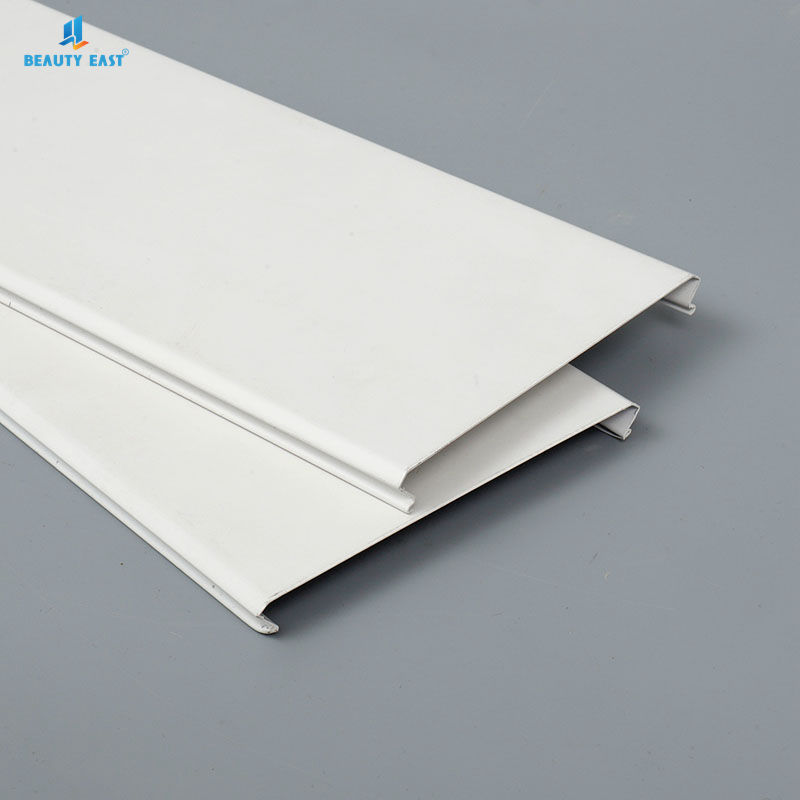

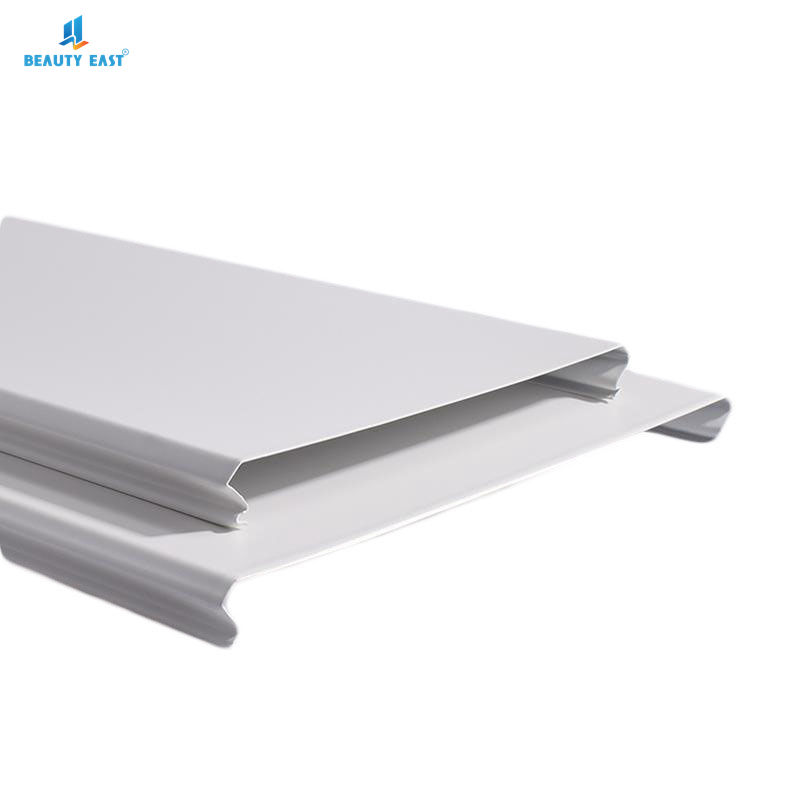

Aluminum strip ceiling
See more pictures
Description:

This product is a practical new type of step shaped ceiling pinch plate, including a front decorative surface with regular polygon and the peripheral buckle under the side of decorative surface, the decorative surface and the peripheral buckle side are both connected with a step face, the ceiling pinch plate are splicing fitted to each other, forming straight and beautiful grooves through the splicing of the adjacent steps, after installation of the ceiling pinch plate, the edge contour becomes more clearly and more obvious, with stronger stereo perception and better visual effect, the product holds advantages of low production cost, convenient installation and buckling, beautiful appearance and durable for usage, etc., it was applied for national patent in March 2005.

Quantity:
  • 1-200sqm
  • 200-500sqm
  • 500-1000sqm
  • 1000sqm above
- +
0
- +
0
- +
0

Product Detail
Parameters
Feedback Now

Product PARAMETERS

Series Aluminum strip ceiling
Function Fireproof, moisture-proof, smoke-proof, sound-absorbing
Metal ceiling material Aluminum, aluminum alloy

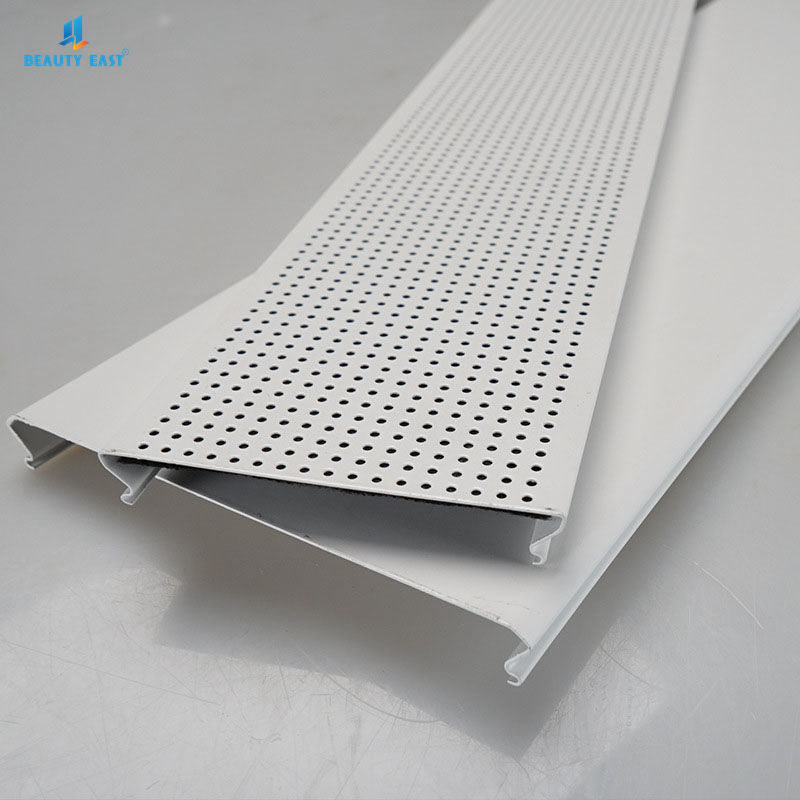

Perforated Support
Size 50, 100, 150, 200, 300mm (Support Closed Linear)
Beveled Size(Width): 75mm, 100mm, 150mm, 200mm, 300mm

Right-Angle(Width): 50mm, 100mm, 150mm, 200mm, 300mm

Height 14~16mm
Thickness 0.45~1.0mm
Surface treatment Brushed, powder coating, film coated, polyester oil- painting, fluorocarbon oil-painting
Hole dia 1.8/ 2.3 mm diameter, 5.0mm square, 6.0mm round
Height Beveled:15mm
Right-Angle:14mm

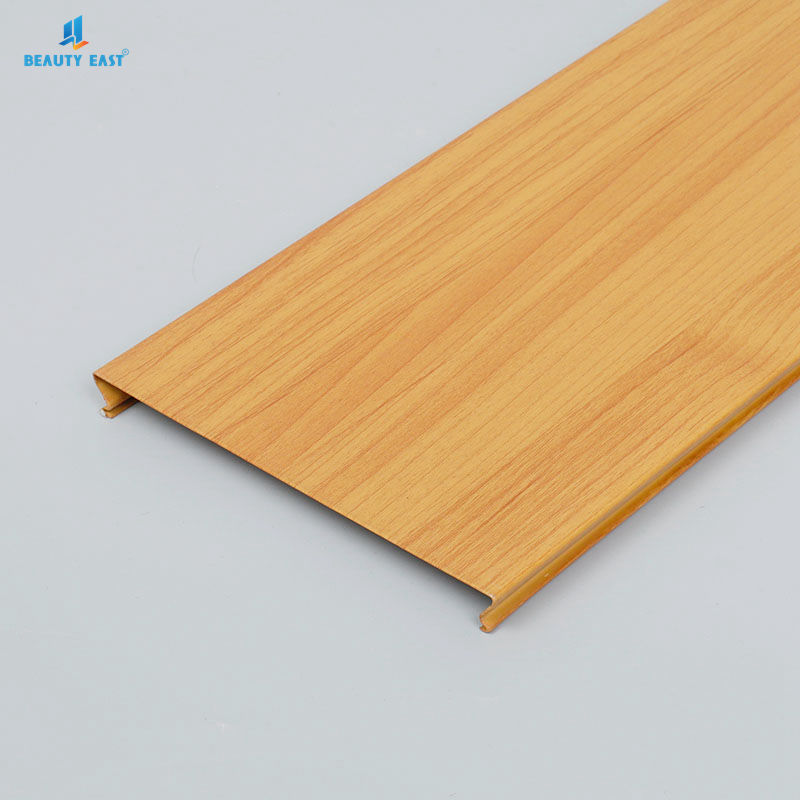

Color can be adjusted

Applications

FAQ


Q1. Can I have a sample order for your product ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: What is the delivery time?
Usually 15-20 days after receiving deposit.

Q3. Do you have any MOQ limit for your product?
Low MOQ, 1sqm for sample checking is available.

Q4. How to proceed an order for your product?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on your film?
Yes. printing film can customized according to your requirement.
